FEATURES
DISTANCE MEASUREMENT
1000m reflectorless measuring range covers a most common scale in your field job. With a single prism, you can reach up to 5km quickly with 2mm+2ppm accuracy.
DATA EXCHANGE
With flashdrive port, users can export/import data more easily and directly. New Arc5 pro support max.256G USB storage.
ANGLE MEASUREMENT

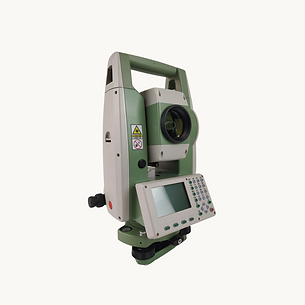

Arc 5 Pro adopts an absolute encoding system, which does not require initialization by 0 set, and delivers a precise and stable angle measurement with up to 2" accuracy.
SOFTWARE: SANDING PC TOOL
Powerful and convenient data transfer and post processing software with concise and clear interface and user-friendly operation. User can download and upload raw data or coordinates in GSI format, edit coordinates and codes, design and edit road data, transfer GSI data to DXF file for processing in CAD, etc.
TILT COMPENSATOR
The dual-axis tilt compensator monitors the inclination of both X and Y axes, and then correct the horizontal and vertical angle reading automatically.
ON-BOARD SOFTWARE & APPLICATIONS
Arc 5 is powered by a sophisticated on-board software which enables you to manipulate the total station effectively, like setting the compensation, COGO, data viewing and transfer, calibration, etc.
DISPLAY & TRIGGER KEY
A high definition graphic display with 8 lines and 2 sides of alphanumeric keyboards provides clear images and convenient operation, A global key allows you take measure in any screen.
SPECIFICATIONS
TELESCOPE
Length: 154mm
Objective Lens Diameter:
Telescope: 45mm Distance Meter: 50mm
Magnification: 30X
Image: Erect
Field of View: 1°30'
Resolving Power: 3"
Mini. Focus: 1.0m
TILT CORRECTION
Tilt Sensor: Dual Axis
Method: Liquid Electric
Range: ±3'
Setting unit: 1"
LEVEL SENSITIVITY
Plate Level: 30"/2mm
Circular Level: 8'/2mm
DISTANCE MEASUREMENT
Single Prism: 5000m *1
Non-Prism: 1000m *2
Accuracy:
-Prism Mode: ±(2mm+2ppmxD)m.s.e.*3
-Non-Prism Mode:
0-500m: ±(3mm+2ppm x D)m.s.e. *3
500-1000m: ±(5mm+3ppm x D)m.s.e.*3
Measuring Time: Fine: 0.9s, Fast: 0.6s, Tracking: 0.4s *4
Meteorologic Correction: Manual Input, Auto Correction
Prism Constant: Manual Input, Auto Correction
On-side Shortcut Trigger key to make measurement more easily.
OPTICAL PLUMMET (OPTIONAL: INTERNAL LASER PLUMMET)
Image: Erect
Magnification: 3X
Focusing Range: 0.3m ~ ∞
Field of View: 5°
ANGLE MEASUREMENT
Method: Absolute Encoding
Detecting System: H: 2 sides, V: 2 sides
Min. Reading: 0.5"/1"/5"/10"
Accuracy: 2"
Diameter of Circle: 79mm
Vertical Angle 0°: Zenith 0°/Horizontal: 0°
Unit: 360°/400gon/6400mil
DATA STORAGE & INTERFACE
Storage: Internal Memory: 4MB; Max. Flashdrive USB supported
Data Interface: USB flashdrive/ Bluetooth
DISPLAY
Size: 66mm X 42mm;240*160 Dot Matrix
No.of Display: 2
Keyboard: Alphanumeric Key
GENERAL
Laser Class:
-EDM: Class IIIA
-Laser Plummet: Class II
Working Temperature:
-20℃ to ＋50℃
Battery Type: Rechargeable Lithium Battery
Battery Voltage: DC 7.4V
Working Time: 12h
Water & Dust Proof: IP65
​
